Styromen Grand Tundra (1850 mm)

Styromen Grand Tundra (1850 mm) – EPP Model Aircraft Kit

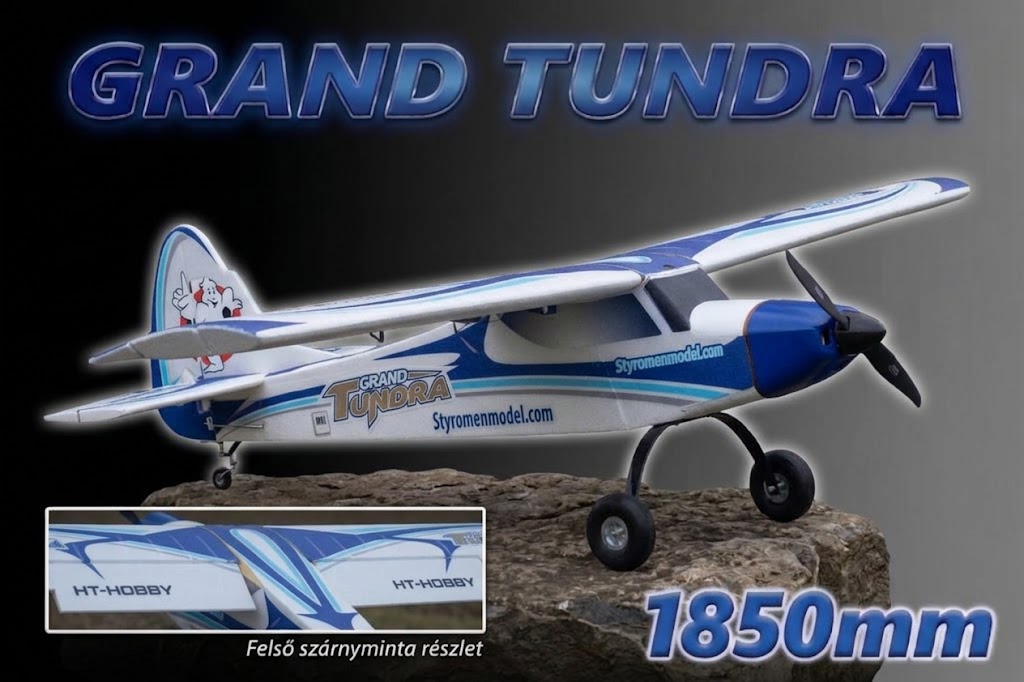

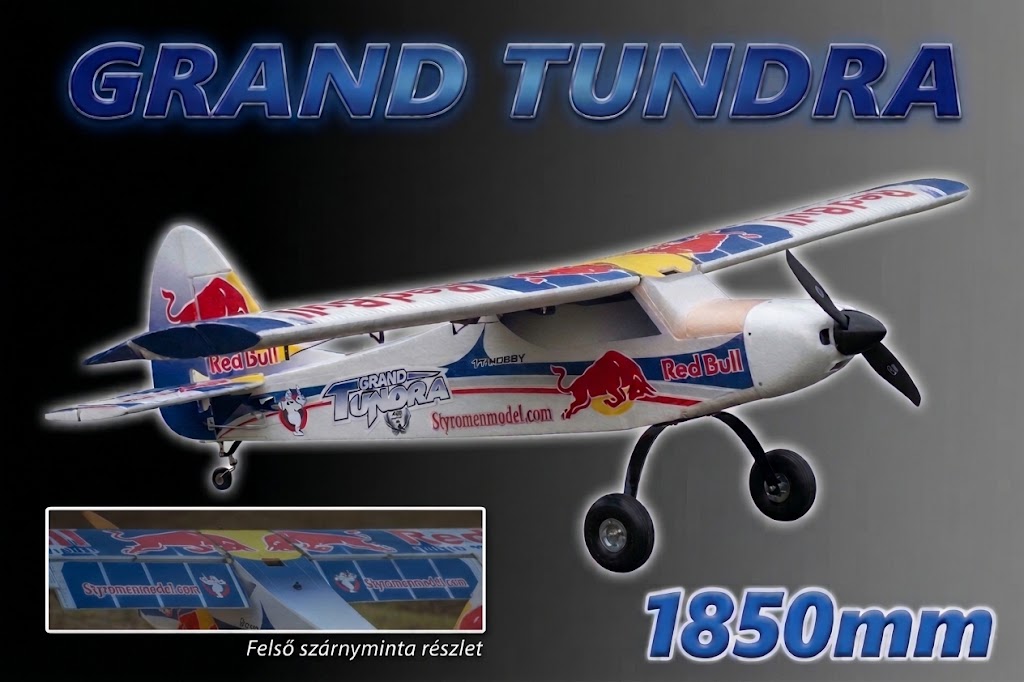

The Styromen Grand Tundra is an 1850 mm wingspan EPP foam model featuring outstanding flight characteristics. It creates the perfect balance between impressive SCALE flying and versatile usability. Thanks to the durable EPP construction, the aircraft is ideal for STOL (Short Take-Off and Landing) maneuvers as well as glider towing.

📢 Important Order Information: As these models are handcrafted in limited production runs, please contact us regarding current stock availability or estimated lead time prior to placing your order.

🛠️ Innovative Hybrid Construction & Factory Pre-Assembly

• High-Level Pre-Fabrication: Compared to traditional building kits, a major advantage is that almost all components are pre-assembled at the factory, except for the horizontal and vertical stabilizers, firewall, landing gear plate, and electronics. This significantly reduces your build time.

• Hybrid Building Technique: The structural design follows classic balsa aircraft principles. The foam skin covers an internal wooden framework, resulting in an exceptionally robust, rigid, and durable structure.

• Hidden Carbon Reinforcements: Carbon fiber reinforcements are embedded beneath the skin in both the fuselage and wings, ensuring maximum torsional rigidity during dynamic maneuvers and towing.

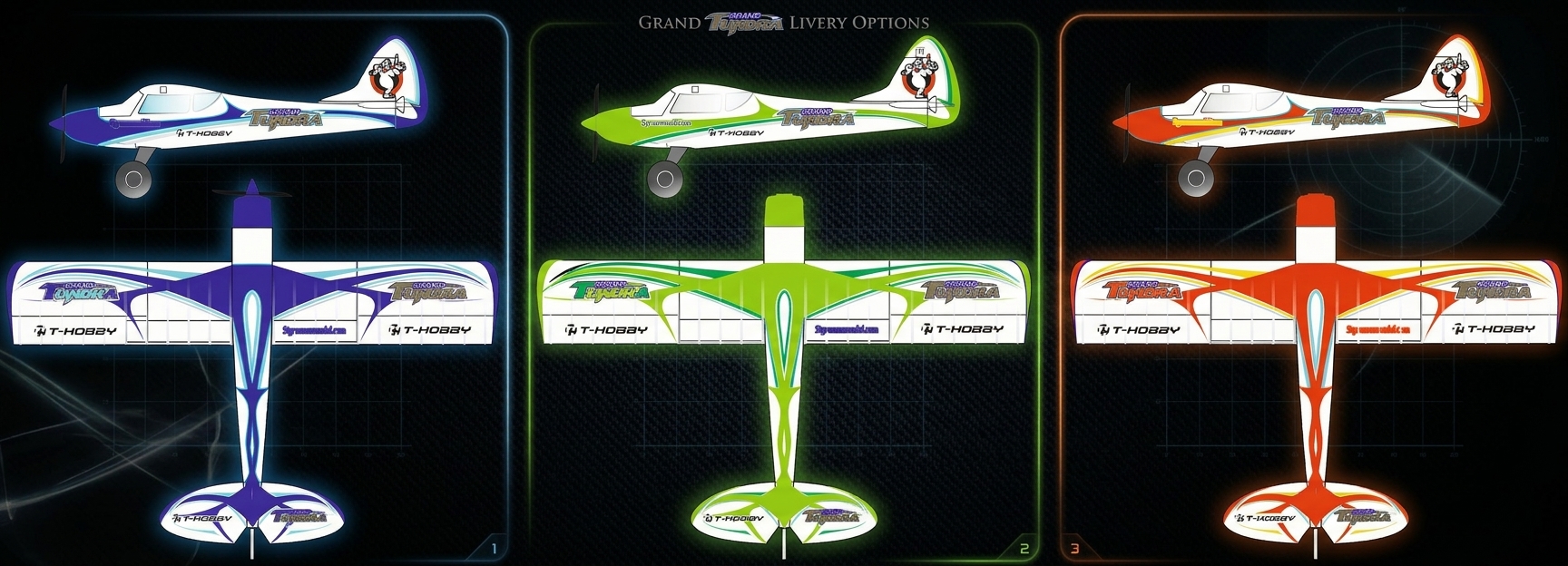

• Premium UV Printing: The graphics are applied using durable, highly detailed, and weather-resistant UV printing technology.


🚀 Recommended Configurations

The model requires a full 6-servo setup (2x ailerons, 2x flaps, 1x elevator, 1x rudder).

1. Hard Version (High Performance / Towing Setup)

• Flight Character: Sporty, dynamic flight with huge power reserves and glider-towing capability.

• Wing Area: 53.65 dm² (Wingspan: 1850 mm, Average chord: 290 mm)

• Flying Weight (AUW): 3500 – 3900 g

• Wing Loading: 65.2 – 74.5 g/dm²

• Battery: 6S 5000 mAh LiPo

• Motor Options:

  • Standard / Budget: T-Hobby AM600 (525 KV)

  • High Power / Extreme: T-Motor AM670 (for towing)

• Propeller:

  • For AM600: 14x7 or 15x8 (2-blade)

  • For AM670: 15x8 or 16x8 (2-blade) / 14x8 (3-blade)

• ESC: 80A – 120A (with a strong built-in BEC to power all 6 servos reliably)

• Servos: PTK 8812MG-D or Corona DS 239MG (or other high-quality standard-sized metal gear servos).


2. Light Version (Efficient / Cruising Setup)

• Flight Character: Relaxed, extended SCALE cruising with smooth, predictable low-speed approaches and excellent wind tolerance.

• Wing Area: 53.65 dm² (Wingspan: 1850 mm, Average chord: 290 mm)

• Flying Weight (AUW): 3250 g

• Wing Loading: 60.6 g/dm²

• Battery: 4S ~5000 – 6000 mAh

• Motor: 36–42 size, 1000 KV brushless motor

• Propeller: 12x6 or 13x6 (2-blade)

• ESC: 60A speed controller

• Servos: Same 6-servo layout (PTK 8812MG-D, Corona DS 239MG, or standard servos)

• Flight Time: At ~60% throttle cruising speed, flight times of up to 14 minutes are easily achievable!


💡 Servo Mount Note: The factory servo pockets/mounts included in the kit are specially molded to fit low-profile wing servos such as the PTK 8812MG-D and Corona DS 239MG. While standard-sized servos can be installed, the factory pre-molded mounts will not fit other standard servo cases without modification.
